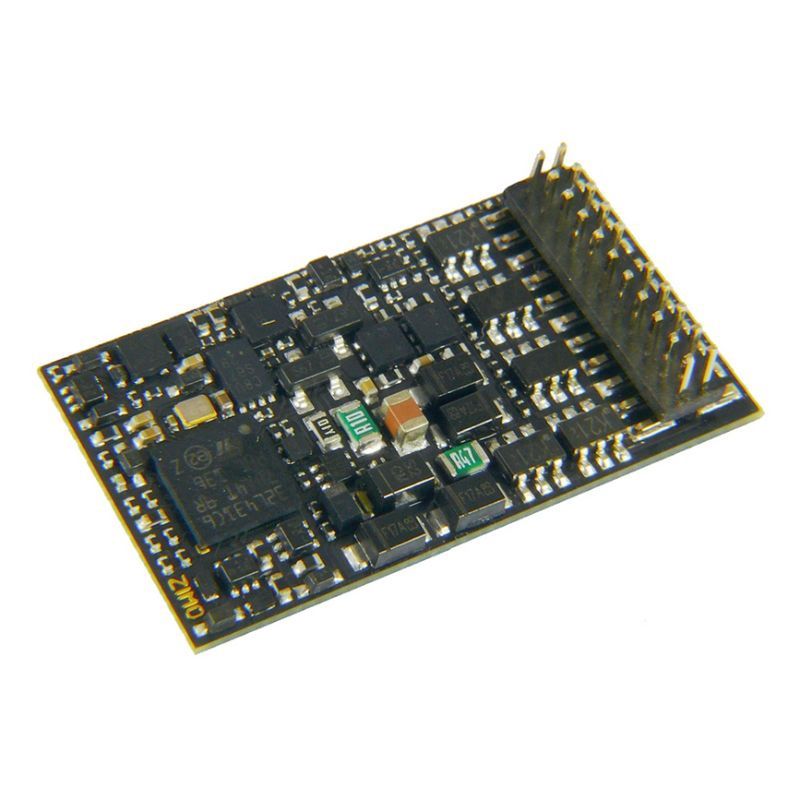

Bachmann 36-570B Plux22 DCC Loco-Decoder (with Brake Button function) - SAVE £6.46!

DISCOUNTED SHIPPING, ONLY £1.99

A Plux22 (NEM658) DCC Decoder suitable for models fitted with a Plux22 DCC decoder socket.

This decoder replaces item Nos. 36-570 and 36-570A and can be used in any model for which item Nos. 36-570 or 36-570A are recommended

Highlights include:

Multi-mode (NMRA-DCC format, Motorola protocol, DC Analogue and AC Analogue (Marklin)) with Back EMF function

10 powered function outputs (+2 servo or SUSI or logic level outputs)

1.2A continuous load

Suitable for models equipped with DC motors (including coreless motors)

Brake Button function for realistic control of braking (operates on F2)

Operating Modes

Multi-mode (NMRA-DCC format, Motorola protocol, DC Analogue and AC Analogue (Marklin)) with Back EMF function

14, 28 and 128 speed steps

Short and Long addresses

Motor Control Features

Suitable for models equipped with DC motors (including coreless motors)

1.2A continuous load

Variable pulse width frequency motor regulation (up to 40kHz)

Motor output overload protection; Back EMF (de-selectable)

Function Outputs

10 powered-function outputs with overload protection

800mA load per output

800mA total load of all function outputs

2 additional servo or SUSI or logic level outputs

Shunting speed and momentum key selectable

Dimensions

30mm x 15.3mm x 2.2mm

Default Address

Address 3

Programming

DCC Service Mode & DCC PoM (Programming on Main)

Additional Features

RailCom® Feedback system

Capacitor connections

Upgradable firmware

This decoder is manufactured on behalf of Bachmann Europe by Zimo. For full technical specifications and instructions, please refer to the Zimo user guide for MN330P22 at www.zimo.at/web2010/documents/MX-KleineDecoder_E.pdf
